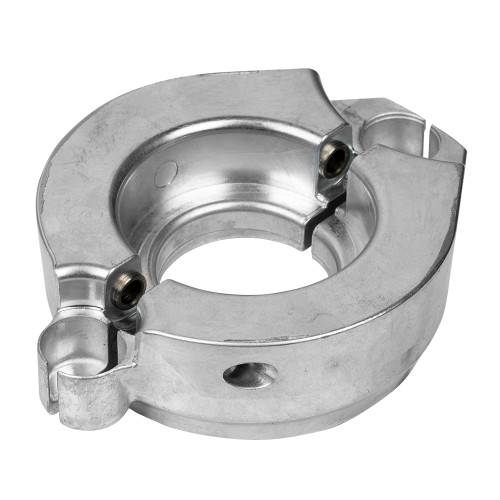

Split Half Coupling for Volvo - .75"
The R & D Marine Steel Clamp Half Coupling has a 4" diameter flange size. Steel Clamp Half Couplings can accommodate the variations that occur with normal shaft tolerances, are easy to install, and can be adjusted to the required position on the shaft. This particular split-half coupling is made for a Volvo.
High Strength:
- Machined from solid steel
Excellent Fit:
- Clamps to give a better fit than a solid coupling
- Able to accommodate normal shaft tolerances
Easy Installation:
- Easy to install and position
Specifications:
- Type of Gearbox (inch): 4" Flange Volvo
- Imperial Bore Diameter (inch): .75"
- Flange Diamter (inch): 4"
- Hole Pitch Circle: 80mm
- Number of Holes: 4
- Hole Size: 10mm
- Register: 60mm F
- Length (inch): 3.28"
